The concrete hunch check is arguably one of the maximum vital and extensively used field exams in civil engineering and construction. A way from being a trifling habit, it serves as a short, reliable indicator of the consistency and workability of freshly blended concrete. Its significance cannot be overstated, because the workability without delay affects how effortlessly the concrete may be placed, compacted, and completed, besides segregating its constituent materials. An 800-word exploration of the concrete droop test needs to delve into its records, method, interpretation, and the crucial elements it helps control on a production website.
Historical Context and Necessity
Earlier than the standardized droop check, assessing concrete consistency relied in large part on subjective visible inspection or crude strategies, leading to inconsistent nice. The hunch takes a look at, in its cutting-edge standardized shape, used to be evolved in the early 20th century to offer a simple, quantifiable degree of consistency. It’s miles standardized globally with the aid of companies just like the American Society for Testing and Materials (ASTM C143/C143M) and the European well-known (EN 12350-two), ensuring uniformity in testing across specific initiatives and nations.
The necessity of the test stems from the twin requirements of concrete: it should be fluid ample to be positioned into complex formwork and round reinforcement metal (workability), but no longer so fluid that the heavier mixture separates from the cement paste (segregation). The stoop value acts as the primary high-quality check before a single cubic meter of concrete is poured, mitigating the danger of structural defects later on.
Methodology: Performing the Slump Test
The manner for the droop test is deceptively easy, requiring only some portions of the gadget: the slump cone, a tamping rod, and a non-absorbent, rigid base plate.
- education: The slump cone (a frustum of a cone, generally 12 inches (three hundred mm) high with a 4-inch (one hundred mm) top diameter and 8-inch (two hundred mm) bottom diameter) is placed on the base plate and held firmly. The interior of the cone and the plate are cleaned and dampened.
- Filling: The cone is full of the fresh concrete combination in three layers of about equal extent.
- Tamping: every layer is tamped precisely 25 instances the usage of the tamping rod (a metallic rod, typically 5/eight inch (sixteen mm) in diameter with a rounded stop). Tamping needs to be uniform, making sure the rod penetrates the layer under.
- Putting Off: After the 0.33 layer is tamped, the excess concrete is struck off flush with the top of the cone the usage of the tamping rod, and the vicinity across the base is wiped clean of any spilled concrete.
- Lifting: The cone is lifted vertically and regularly, except for rotational or lateral movement, over a duration of about 5 seconds. The unsupported concrete mass then subsides or “slumps.”

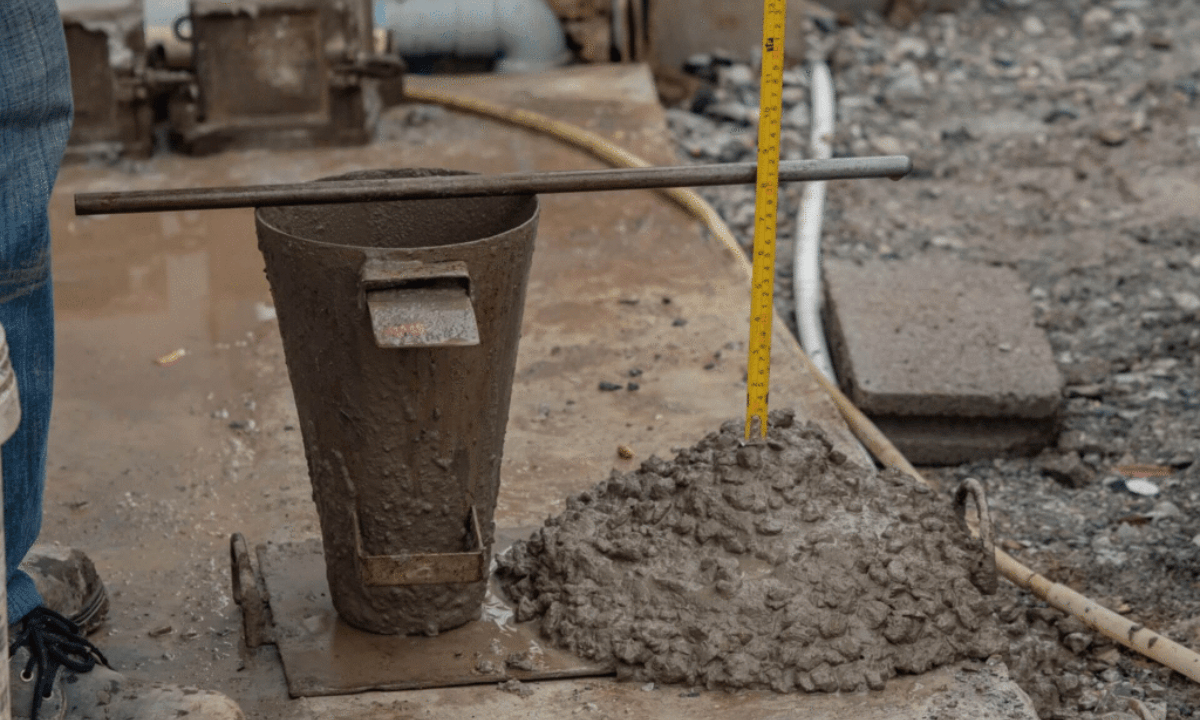

- dimension: the height distinction between the unique middle height of the cone (300 mm) and the highest point of the settled concrete specimen is measured. This distance, recorded to the nearest five mm (or 1/4 inch), is the concrete stoop.
This unique technique ensures that the effects are reproducible and, without delay, comparable to the project specs.
Deciphering the slump value
The measured stoop fee at once correlates with the concrete’s consistency, which is mainly controlled by means of the water-to-cement ($W/C$) ratio and the use of chemical admixtures (like plasticizers). stoop values are normally classified into 4 principal forms of “droop shape”:
- proper droop: The concrete mass subsides uniformly. This is the desired outcome, and the value measured is the genuine droop. A lower droop (e.g., 25–seventy-five mm or 1–three inches) shows a stiff mix, suitable for mass concrete or pavements. A medium slump (e.g., seventy-five–one hundred twenty-five mm or three–five inches) is ordinary for bolstered concrete systems.
- Shear droop: One part of the cone shears off or slides sideways. This indicates a cohesive mix, however, one with low drift traits, probably as a result of poor blending or a mix that is too harsh (missing enough fine combination). If a shear hunch takes place, the test is frequently invalidated and has to be repeated.
- collapse droop: The concrete mass absolutely collapses. This shows a totally moist, non-cohesive mix with an excessive $W/C$ ratio. This concrete is rather at risk of segregation (aggregate settling) and bleeding (water rising), and is typically unsuitable for structural use.
- zero slump: The concrete remains without a doubt the identical top as the cone. This shows an extremely dry, stiff blend, suitable for specific programs like curler-compacted concrete, however, requiring high-electricity compaction methods.
A project’s technical specifications will dictate the goal slump and the desirable tolerance range (e.g., $a hundred text mm pm 25 textual content mm$). If the measured droop falls out of this range, the batch of concrete is non-conforming, and corrective action, including a special amount of superplasticizer or rejecting the burden entirely, is required.
The necessary function of the Water-Cement Ratio
while the slump take a look at measures workability, its outcomes are an immediate reflection of the underlying water-to-cement ratio, which is the most important thing determining the concrete’s strength and durability.
- excessive $W/C$ Ratio = excessive hunch: more water leads to an extra fluid mix (high hunch). However, excess water also creates voids, resulting in lower compressive strength and reduced sturdiness (making it greater permeable and at risk of freeze-thaw harm).
- Low $W/C$ Ratio = Low slump: much less water leads to a stiffer blend (low stoop). This increases energy and sturdiness; however, if the mix is just too stiff, it will become challenging to locate and compact, probably main to voids (honeycombing) and next structural failure.
The stoop test, consequently, is a necessary balancing act—it ensures the concrete is doable for proper placement at the same time as confirming that the essential $W/C$ ratio has no longer been compromised through the unauthorized addition of water at the task website, a common exercise that severely compromises nice.
End
The concrete slump test remains a critical tool on every production site. It’s miles a speedy, fee-effective, and standardized approach for checking the workability of concrete, which, in turn, affords an indirect guarantee of the mixture proportions and, most significantly, the water-to-cement ratio. By meticulously following the hookup procedure and correctly interpreting the ensuing results, engineers and quality management personnel can confidently accept or reject a concrete batch, ensuring that the final structure meets the project’s requirements for energy, strength, and aesthetic finish. The common-or-garden hunch cone is, in essence, the primary line of protection against poor concrete fines, making it a true cornerstone of cutting-edge construction and excellent management.
